Designed to automatically collect data for ShapeArrays
The Canary Systems® MLSAA is a turnkey system to automate data collection for up to 5 Measurand® ShapeArrays. It comes integrated with all the components necessary to extract data from the ShapeArray sensors, store it locally, and transmit to the server for further processing and analysis. The optional MLMux5 multiplexer provides up to 10 input channels for expanding the number of sensors connected to each datalogger.
The MLSAA can be optionally equipped with additional sensor interfaces to connect other instrumentation types, which allows for monitoring of a variety of instruments, including vibrating wire, flowmeters, linear potentiometers, 4-20mA and temperature devices such as YSI44005 type thermistors, among others.
Power to all components is supplied by a rechargeable 12 V 50 Ah lead-acid battery including a 40 W solar panel. The battery is suitable for several weeks of operation without sunlight. It should last for about 3-5 years, though application and measurement interval have a large effect on battery life. The charging is controlled by a CH200, ideal for an external rechargeable 12 VDC battery.
The system includes equipment for remote deployment, and the NEMA 4/12 rated enclosure ensures reliable operation under adverse conditions.
Warranty for the MLSAA is applicable for 1 year.

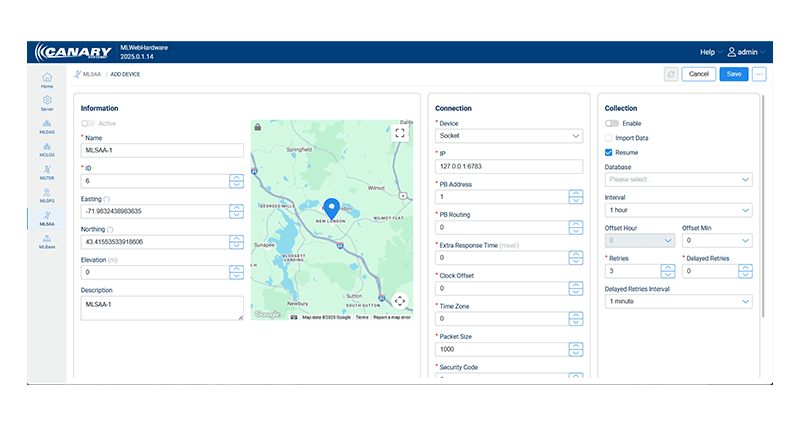

MLSAA can be integrated with the web-based MLWebHardware™, an application designed to communicate, program, and collect from many makes and models of dataloggers and sensors directly. With a user-friendly interface, updating datalogger settings has never been easier

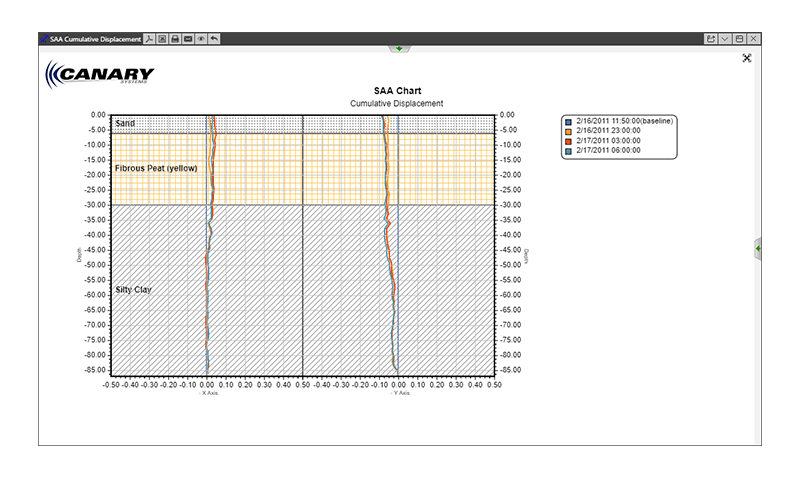

Datalogger programming, data collection and visualization is also fully integrated with and can easily be managed by the MLSuite® data management platform, without the need for any additional software. Once data is imported to MLSuite, users can prepare charts and calculations such as cumulative displacement.
Designed to automatically collect data for ShapeArrays
Includes WiFi communications up to 1 mile range
Additional sensor interfaces to connect other instrumentation types
Model | MLSAA1-C-50S MLSAA5-C-50S | MLSAA1-W-50S MLSAA5-W-50S | MLSAA1-M-50S MLSAA5-M-50S | MLSAA1-T-50S MLSAA5-T-50S |
---|---|---|---|---|
MCU | CR6 | CR6 | CR6 | CR6 |
Enclosure Type | Steel | Steel | Steel | Steel |
Size (L x W x H) | 51 x 41 x 25 cm 20 x 16 x 10 in | 51 x 41 x 25 cm 20 x 16 x 10 in | 51 x 41 x 25 cm 20 x 16 x 10 in | 51 x 41 x 25 cm 20 x 16 x 10 in |
Assembled Weight | 31 kg 68 lbs | 31 kg 68 lbs | 31 kg 68 lbs | 31 kg 68 lbs |
Battery | 50 Ah | 50 Ah | 50 Ah | 50 Ah |
Solar | 40 W | 40 W | 40 W | 40 W |
Receiving | RS-232 USB | RS-232 USB | RS-232 USB | RS-232 USB |
Transmitting | RF4xx | Wi-Fi | RV50X | TransNEXT |
Options | MLMux5 | MLMux5 | MLMux5 | MLMux5 |
Model | MCU | Enclosure Type | Size (L x W x H) | Assembled Weight | Battery | Solar | Receiving | Transmitting | Options |
---|---|---|---|---|---|---|---|---|---|
MLSAA1-C-50S MLSAA5-C-50S | CR6 | Steel | 51 x 41 x 25 cm 20 x 16 x 10 in | 31 kg 68 lbs | 50 Ah | 40 W | RS-232 USB | RF4xx | MLMux5 |
MLSAA1-W-50S MLSAA5-W-50S | CR6 | Steel | 51 x 41 x 25 cm 20 x 16 x 10 in | 31 kg 68 lbs | 50 Ah | 40 W | RS-232 USB | WiFi | MLMux5 |
MLSAA1-M-50S MLSAA5-M-50S | CR6 | Steel | 51 x 41 x 25 cm 20 x 16 x 10 in | 31 kg 68 lbs | 50 Ah | 40 W | RS-232 USB | RV50X | MLMux5 |
MLSAA1-T-50S MLSAA5-T-50S | CR6 | Steel | 51 x 41 x 25 cm 20 x 16 x 10 in | 31 kg 68 lbs | 50 Ah | 40 W | RS-232 USB | TransNEXT | MLMux5 |
Datalogger
CR6 | |
Universal Channels | 12 individually configured inputs for analog or digital functions |
Analog Resolution | 24 bits |
Input Voltage Range | ±5 V |
Pulse Count Channels | 16 (C1 to P4 and U1 to U12) |
Excitation Channels | 12 |
Digital Ports | 16 |
Communications | Ethernet, USB, CS I/O, RS-232, CPI, RS-485, SDI-12 |
Power | 16–32 VDC (CHG) 10–16 VDC (BAT) |
Power Consumption | <1 mA (quiescent) ~3 mA (active, no communications) ~67 mA (active, communication) |
Data Memory | 4 MB SRAM |
Program Memory | 72 MB flash |
OS Memory | 128 MB flash |
Physical & Electrical
Physical |
|
Operating Temperature | -40° to +70° C -40 to +160° F |
Enclosure Size (L x W x H) | 61 x 51 x 25 cm 24 x 20 x 10 in |
Weight | 31 kg 68 lbs |
System Power |
|
Battery | 12V 50 Ah sealed lead-acid |
Solar Panel |
|
Output Voltage | Maximum 18 VDC (loaded) |
Output Power | Maximum 2.4 A (40 W) |
Wireless Interface
SGX 5150 | |
Power | 9–30 VDC |
Power Consumption | 1.9 W (quiescent) maximum 5.5 W (transmitting) |
Ports | RJ45, RS-232, USB |
Speed | Up to 921 kbps |
Interface | 10/100 Mbps Ethernet port (RJ45) |
Standards | WPA/WPA2 pre-shared key (PSK) or IEEE 802.1X, AES-CCMP |
Range (line-of-sight) | 1.31km (1 mile) with directional antenna |
RV50X | |
Operating Voltage | 7–36 VDC |
Idle Current | 65–95 mA at 12 VDC |
Active Current | 250–300 mA at 12 VDC |
Network Technology | 4G (with automatic fallback to 3G) |
4G LTE Frequency Bands (NA & EMEA) | B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 |
TransNEXT | |
Operating Voltage | 6–36 VDC |
Idle Current | 4 mA typical at 13.8 VDC |
Active Current | 510 mA at 13.8 VDC (transmitting) 100mA at 13.8 VDC (receiving) |
Frequency Bands | 902–928 MHz ISM band |
Interface | RS-232/RS-485 (RJ45), USB 2.0 (USB-C), Ethernet port 10/100 Mbps (RJ45) |
Sensor
SAA232 (1-channel) or SAA232-5 (5-channel) |
|
Power Requirements | 9.5–16 V |
Output Power | 13.5 V (automated) 16.5 V (software adjusted) |
Current Consumption | <2 mA (standby) 30 mA active (operating) |
Data Rate | 38.4 Kbps |
Surge Suppression | 600 W (10/1000 μs) 4 kW (8/20 μs) 2 kA (8/20 μs) |
Options
MLMux5 Multiplexer |
|
Channels | 5-channel for 4-wire instruments or 10-channel for 2-wire instruments (switch selectable) |
Control Inputs | 1 or 2 |
Control Input Tolerance | 5–12 V |
Power | 4–16 VDC |
Power Consumption | <0.1µA (quiescent) <10 mA (active) |
Contact Resistance | <160 mΩ (typical) 240 mΩ (maximum) |
Contact Isolation | 500 V |
Relay Operate Time | ~2 ms |
Relay Release Time | ~0.5 ms |
Relay Max Voltage | 60 VAC, 60 VDC |
Relay Max Switching | 2.5 A |
